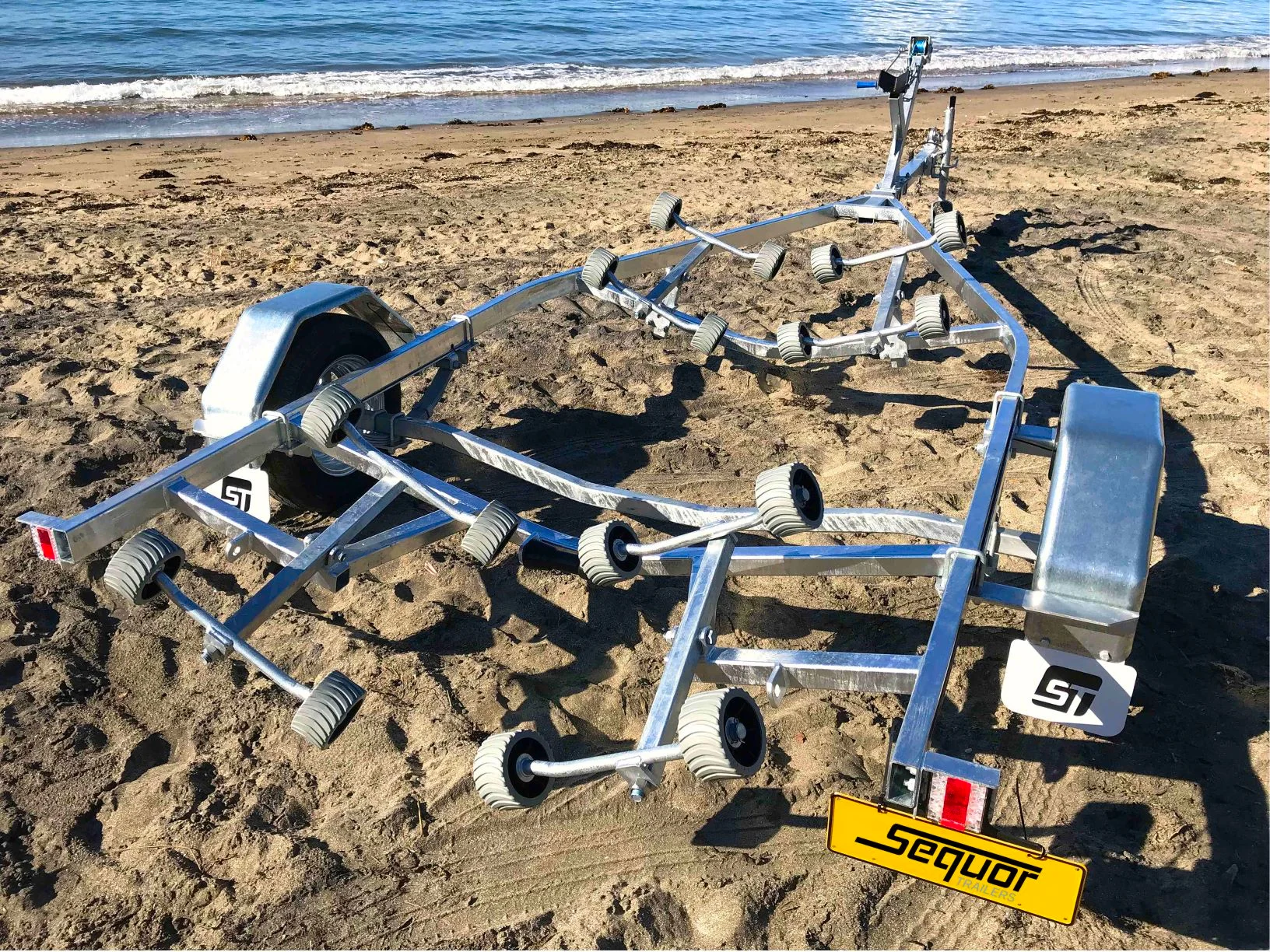

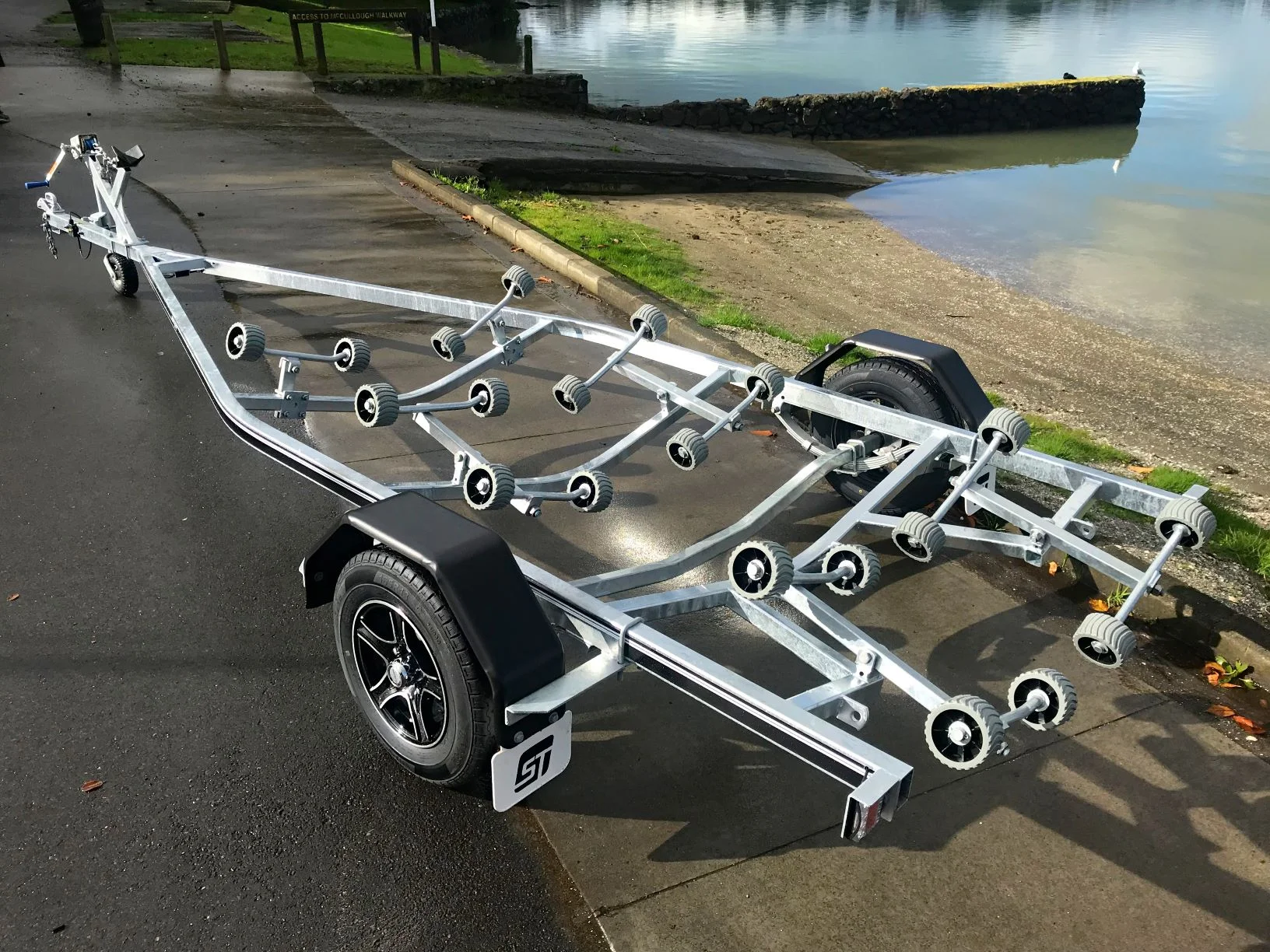

Single Axle Non-Braked 5m - 5.5m

Details:

Designed with the consumer in mind, this trailer’s ‘lead in’ entry and roller configuration is set to specifically suit a boat hull to make solo launching and retrieving a dream.

Custom built to suit boat hull this size, this frame caters for a wide range of boats including, but not limited to:

  • Buccaneer 495

  • Surtees 5.5

  • Domain Alloy 550

  • Brig 520

  • Fyran 540/550

  • Haines Hunter 485

  • Stabicraft 1850

  • Smuggler 550

Specifications:

  • Fully Assembled, Fitted & Ready to Tow Away (excludes ORC)

  • A-Frame Multi-Roller Trailer

  • Fully Galvanised Welded Frame (Aust/NZ steel) 5 year structural warranty

  • Framing Sizes

    • Side Frame 75 x 40 x 3 (Australian steel)

    • Cross Beams 50 x 50 x 3 (Australian steel)

    • Draw Bar 75 x 75 x 3 (Australian steel)

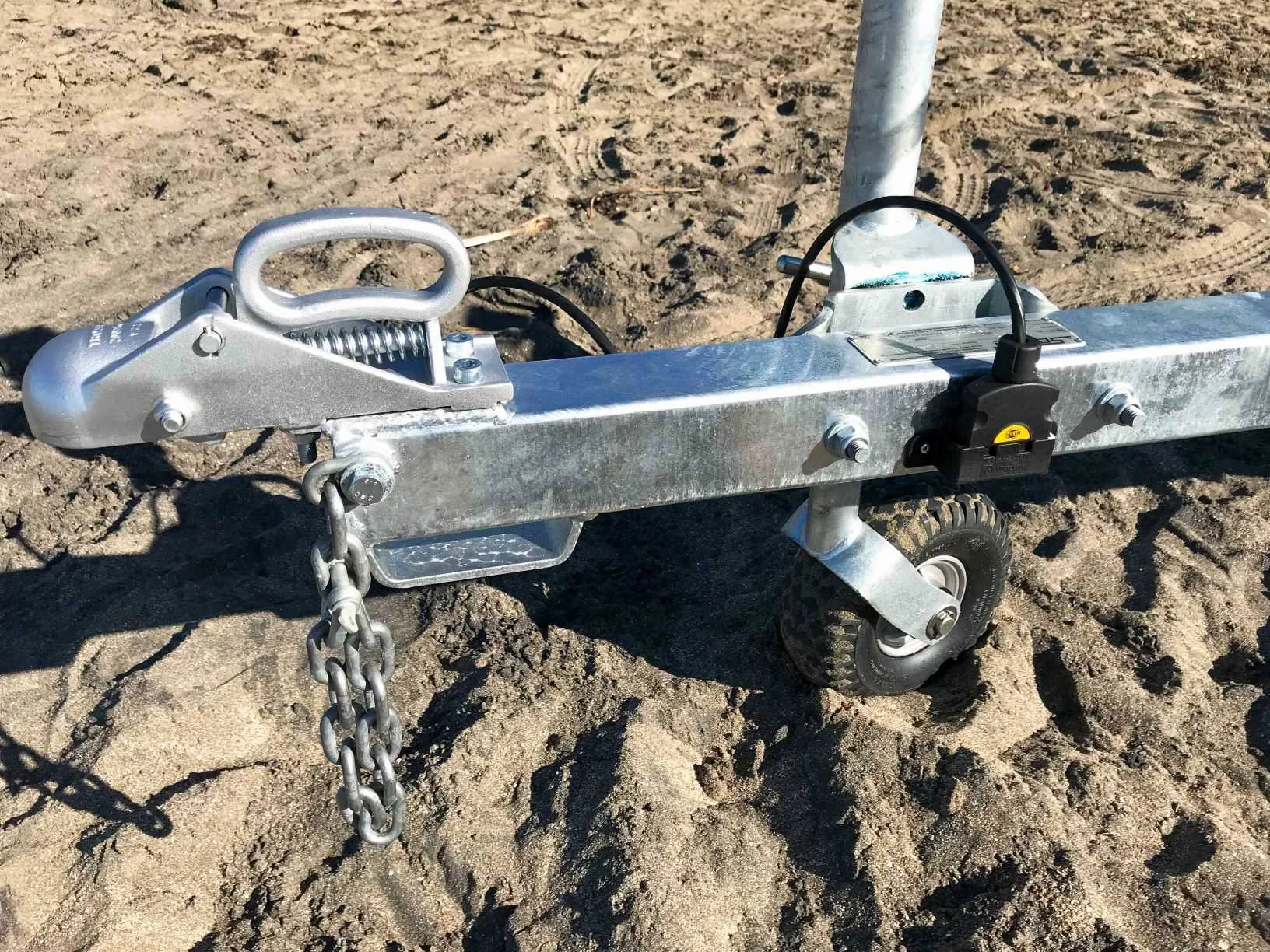

  • 1⅞ Lever Coupling

  • Galvanised Wind-up Jockey Wheel (NZ made)

  • Galvanised 3:1 Covered Winch with Nylon Rope & Handle (NZ made)

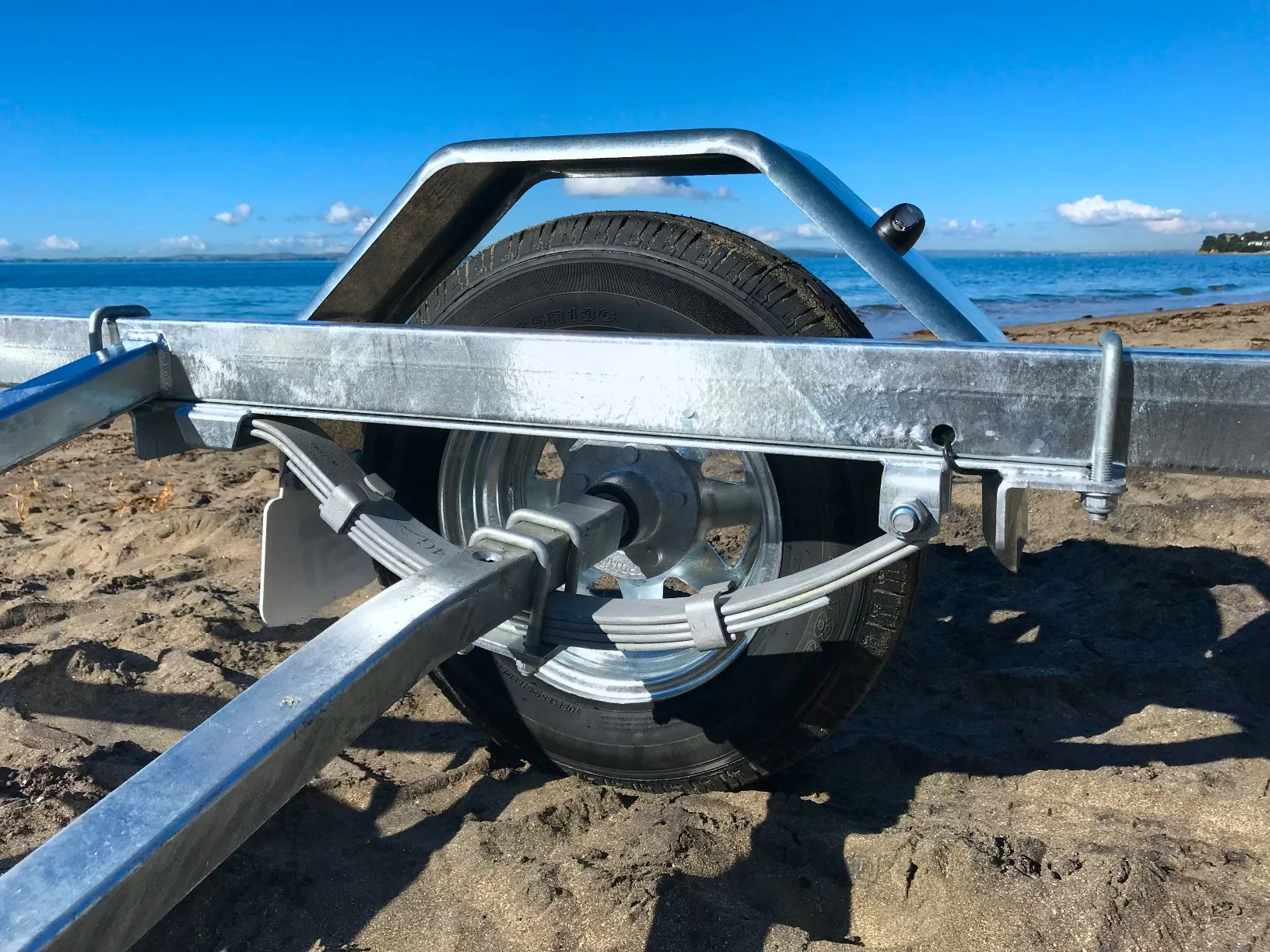

  • Galvanised 4 Leaf Springs

  • Galvanised Mudguards (NZ made)

  • Trojan Stub Axles and 1500kg Hubs

  • Trojan Marine Seals and Japanese Bearings

  • 13" Rims and 165mm 8 ply Rated Tyres

  • Solid Steel Galvanised Tilting Roller Arms (NZ made)

  • Roller Arm Supports with welded in sleeve to help prevent wear & Stainless Steel Nylocs

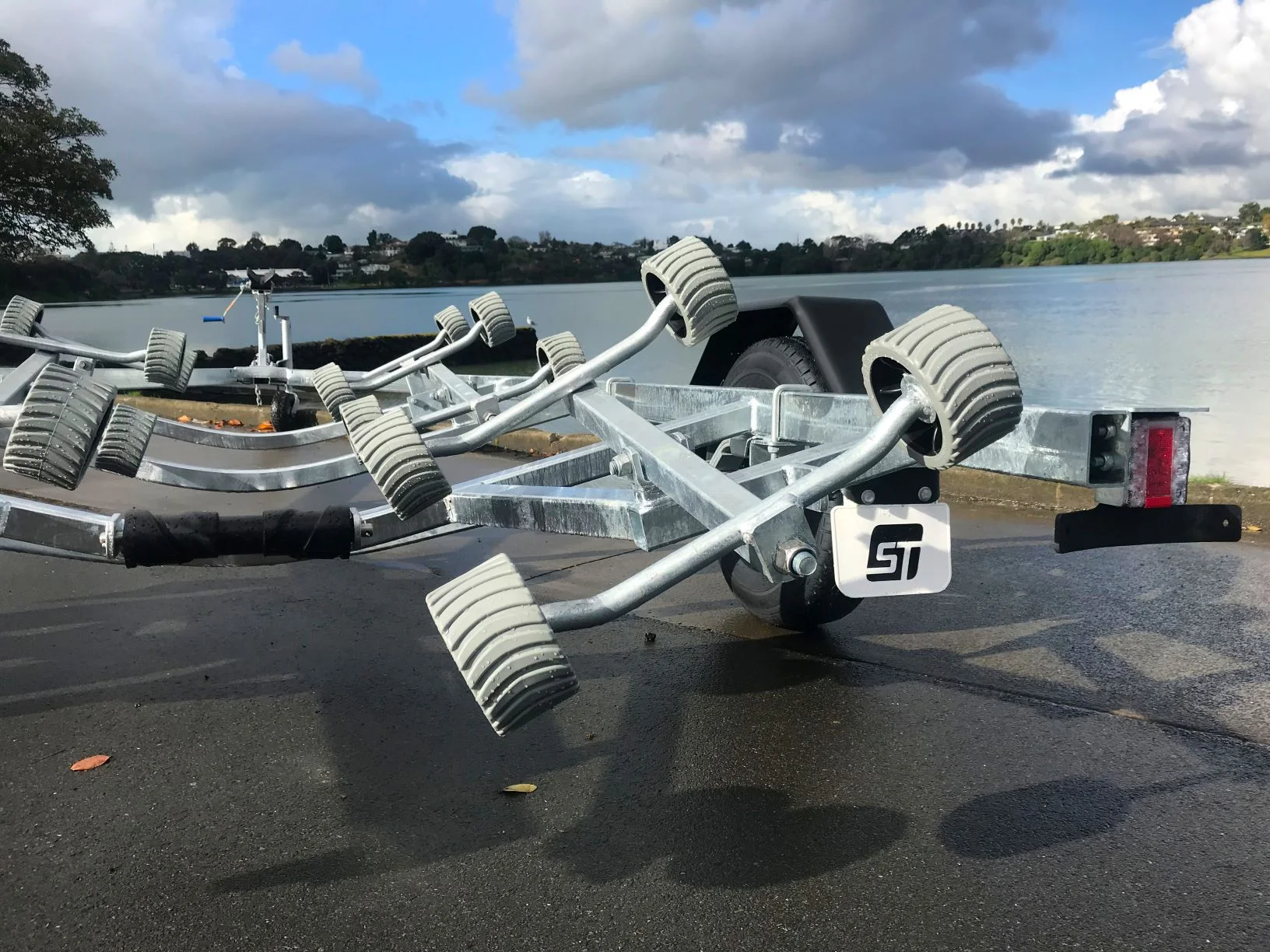

  • Jakaar Boomerang-tread Wobble Rollers x 16 (NZ made) with 3 year Warranty from Jakaar

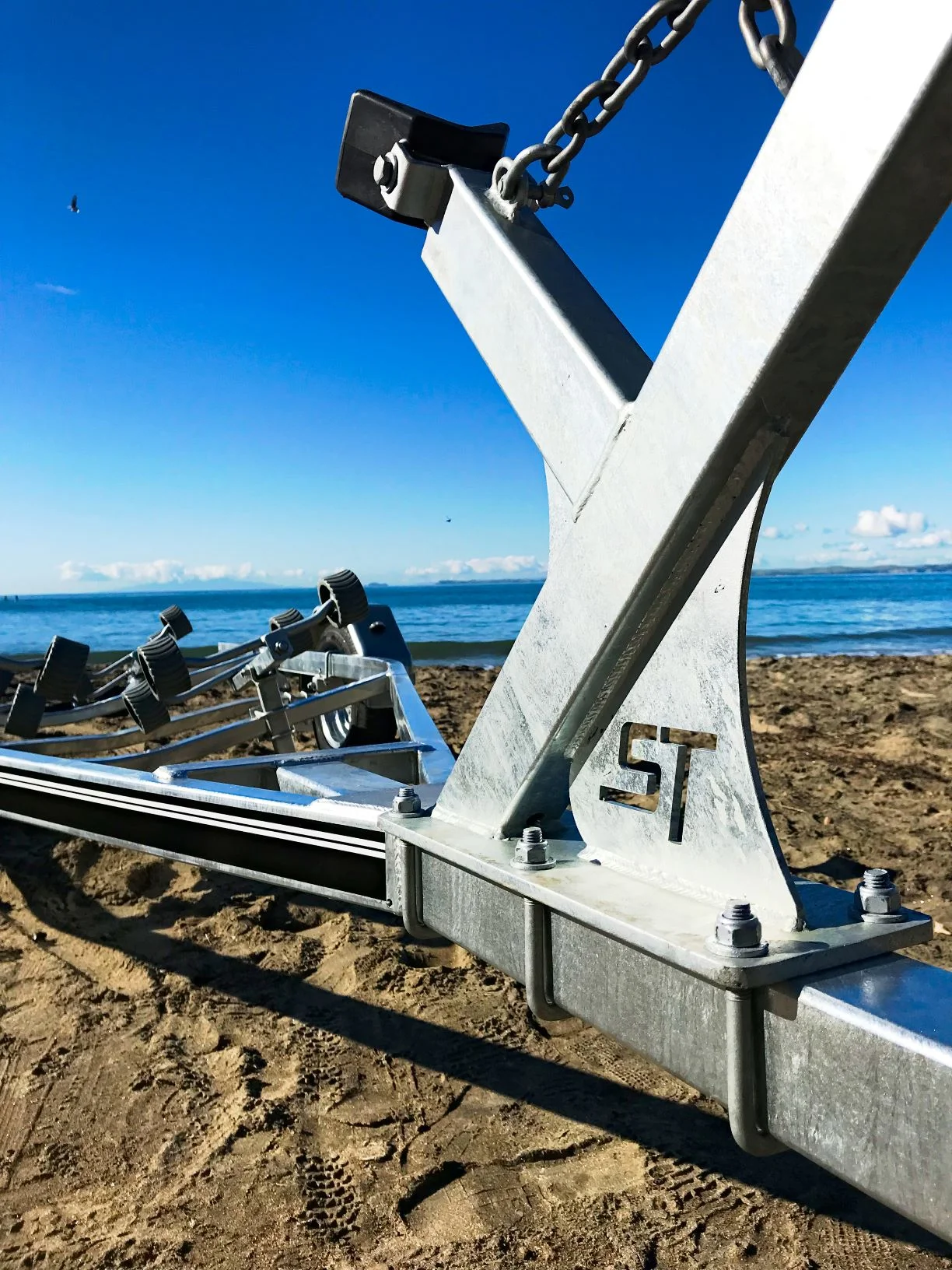

  • Jakaar Keel Roller and Snubbing Block x 1 (NZ made) 3 year warrant

  • Hella LED lights with 5 year warranty from Hella (made in NZ)

Several optional upgrades available such as alloy wheels, black powdercoated guards, guidepoles, etc.

Single Axle Non-Braked 5.5m - 6.0m

Details:

One of the larger single axle trailers before progressing to a tandem axle. This trailer has additional rollers where necessary to ensure correct weight distribution for unhindered ramp performance.

Custom built to suit boat hull this size, this frame caters for a wide range of boats including, but not limited to:

  • Buccaneer 525

  • Surtees 610

  • Brig 610

  • Smuggler 630

Specifications:

  • Fully Assembled, Fitted & Ready to Tow Away (excludes ORC)

  • A-Frame Multi-Roller Trailer

  • Fully Galvanised Welded Frame (Aust/NZ steel) 5 year structural warranty

  • Framing Sizes

    • Side Frame 75 x 50 x 3 (Australian steel)

    • Cross Beams 50 x 50 x 3 (Australian steel)

    • Draw Bar 75 x 75 x 3 (Australian steel)

  • 1⅞ Lever Coupling

  • Galvanised Wind-up Jockey Wheel (NZ made)

  • Galvanised 3:1 Covered Winch with Nylon Rope & Handle (NZ made)

  • Galvanised 4 Leaf Springs

  • Galvanised Mudguards (NZ made)

  • Trojan Stub Axles and 1500kg Hubs

  • Trojan Marine Seals and Japanese Bearings

  • 13" Rims and 165mm 8 ply Rated Tyres

  • Solid Steel Galvanised Tilting Roller Arms (NZ made)

  • Roller Arm Supports with welded in sleeve to help prevent wear & Stainless Steel Nylocs

  • Jakaar Boomerang-tread Wobble Rollers x 20 (NZ made) with 3 year Warranty from Jakaar

  • Jakaar Keel Roller and Snubbing Block x 1 (NZ made) 3 year warranty

  • Hella LED lights with 5 year warranty from Hella (made in NZ)

Several optional upgrades available such as alloy wheels, black powdercoated guards, guidepoles, etc.

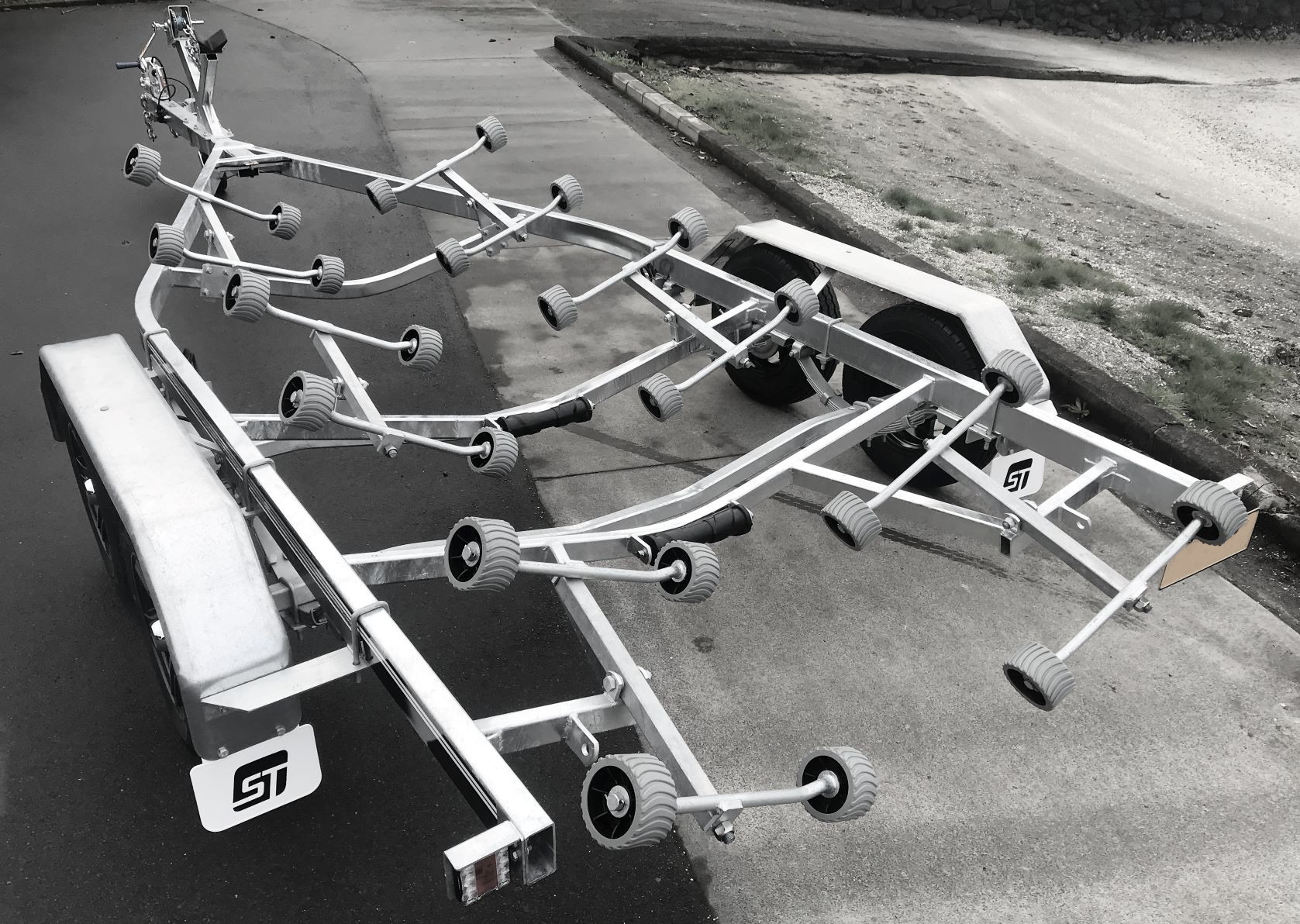

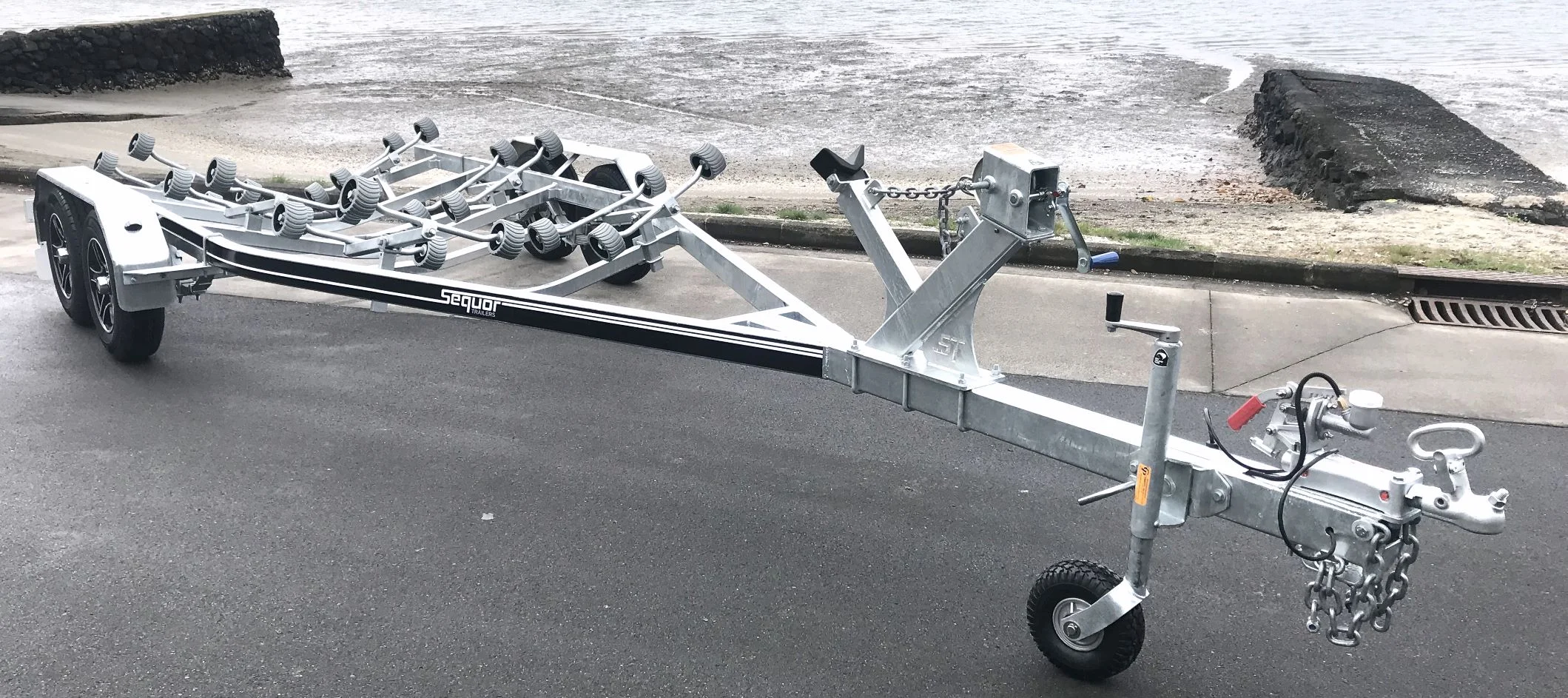

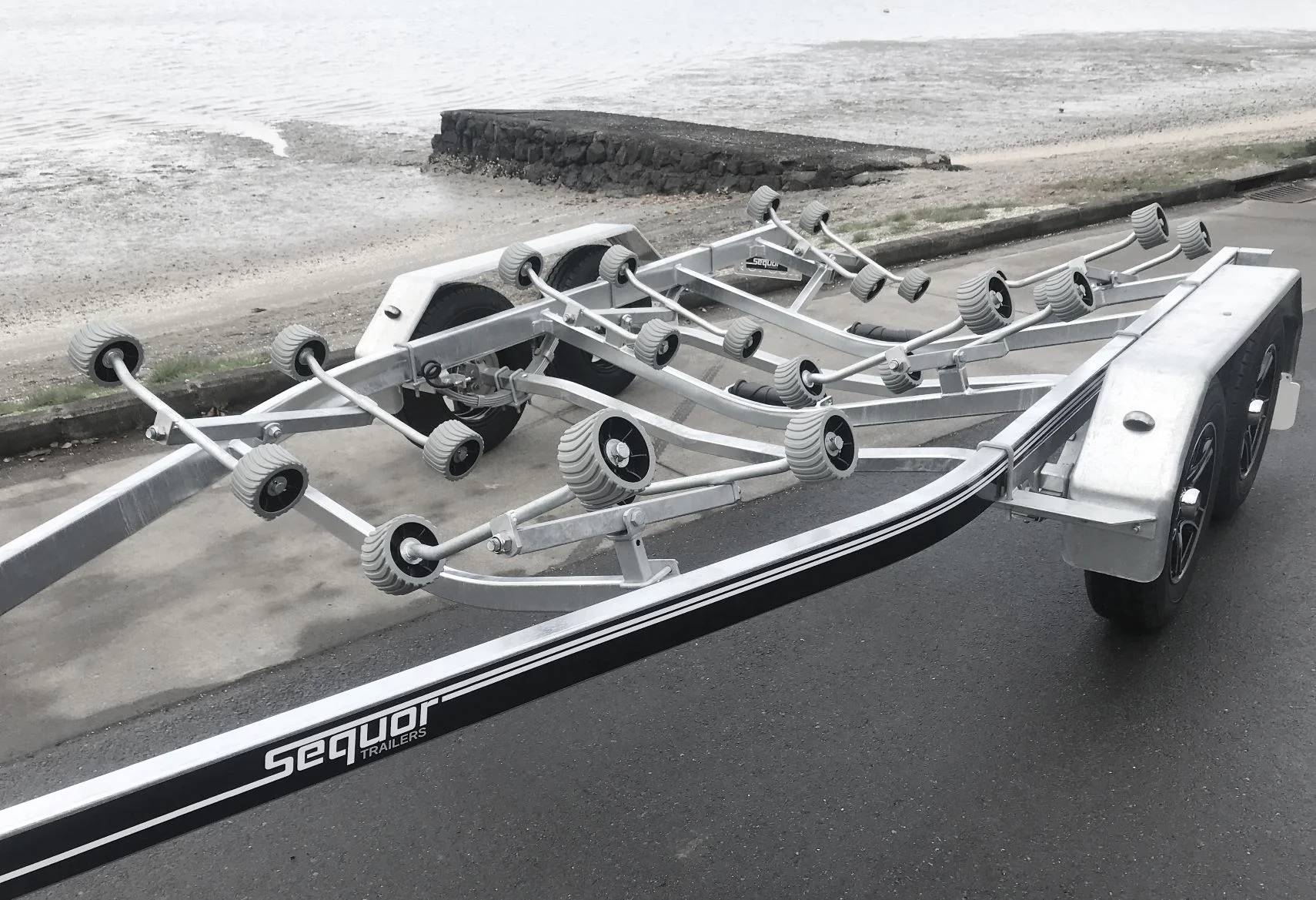

Tandem Axle Override Braked 6.0m - 6.5m

Details:

A tandem axle braked trailer opens up to a range of optional upgrades for more specific customisation, to provide our customer with a product more suited to their preferences.

Custom built to suit boat hull this size, this frame caters for a wide range of boats including, but not limited to:

  • Buccaneer 605

  • Surtees 650

  • Stabicraft 2050

  • Brig 650

  • Haines Hunter SF600

  • Smuggler 650

Specifications:

  • Fully Assembled, Fitted & Ready to Tow Away (excludes ORC)

  • A-Frame Multi-Roller Tandem Axle Trailer

  • Fully Galvanised Welded Frame (Aust/NZ steel) 5 year structural warranty

  • Framing Sizes

    • Side Frame 100 x 50 x 4 (Australian steel)

    • Cross Beams 65 x 35 x 4 (Australian steel)

    • Draw Bar 100 x 100 x 4 (Australian steel)

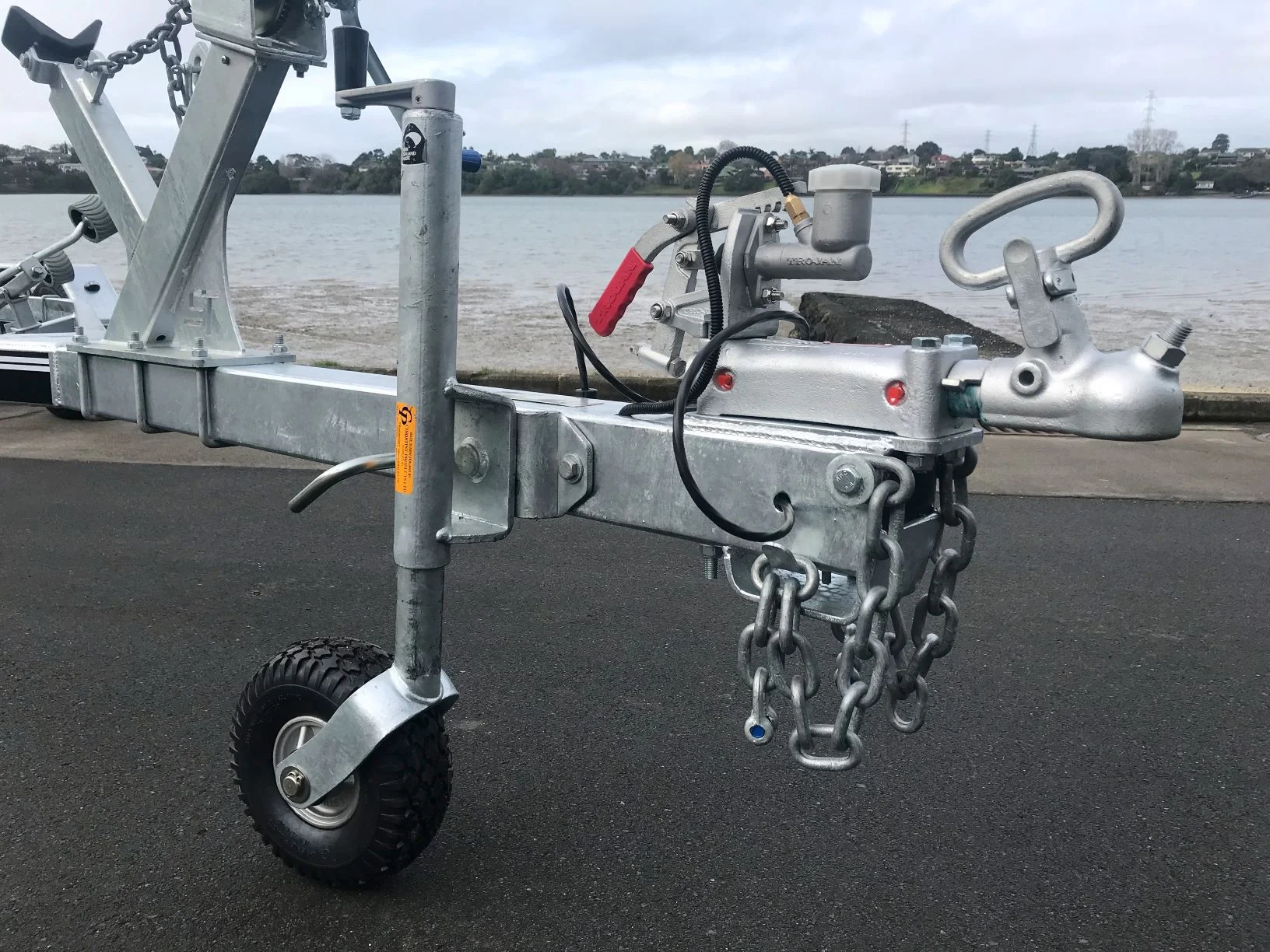

  • Trojan Hydraulic Duo-fit braked Coupling

  • Galvanised Wind-up Jockey Wheel (NZ made)

  • Galvanised 5:1 Covered Winch with Nylon Rope & Handle (NZ made)

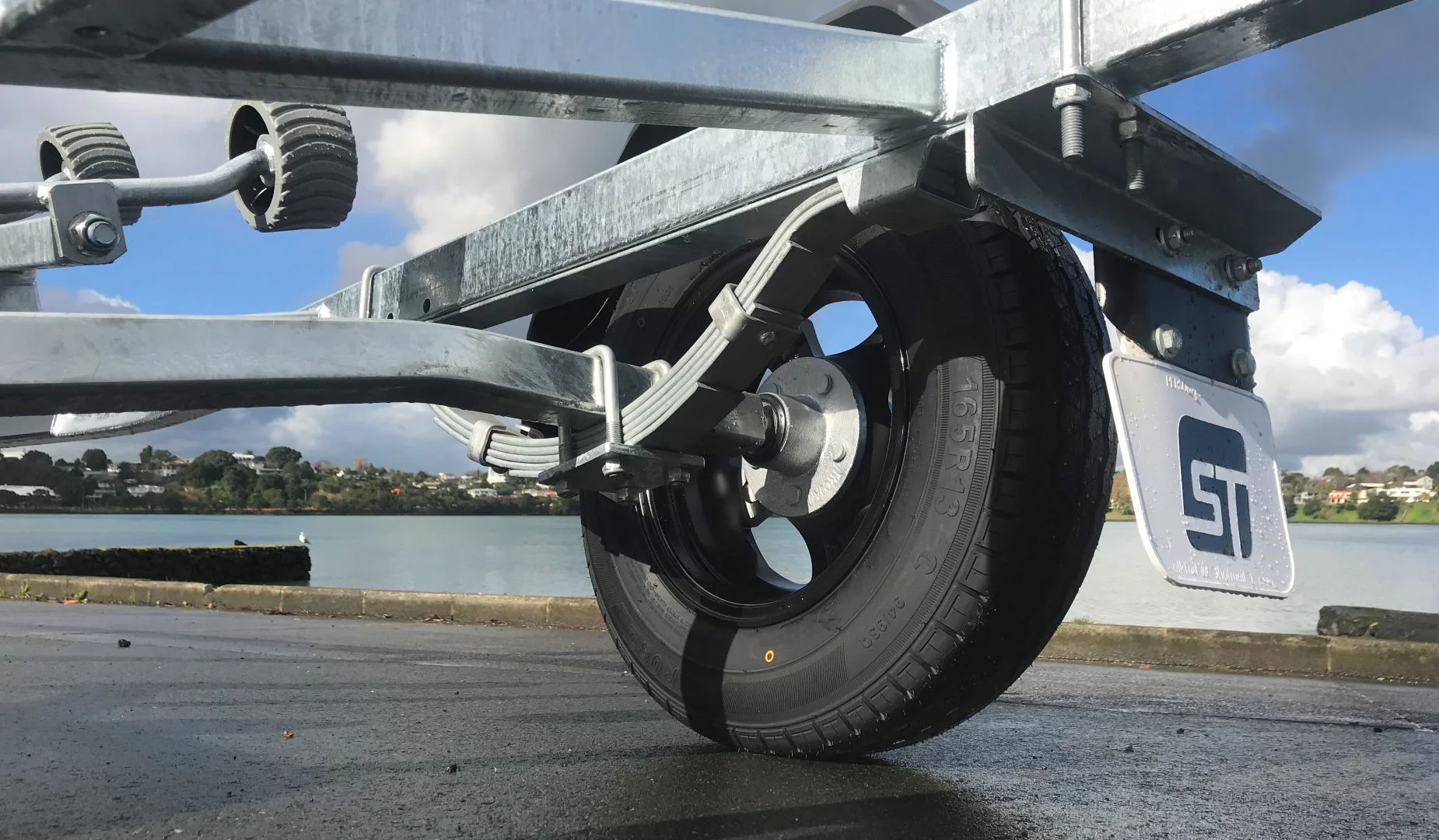

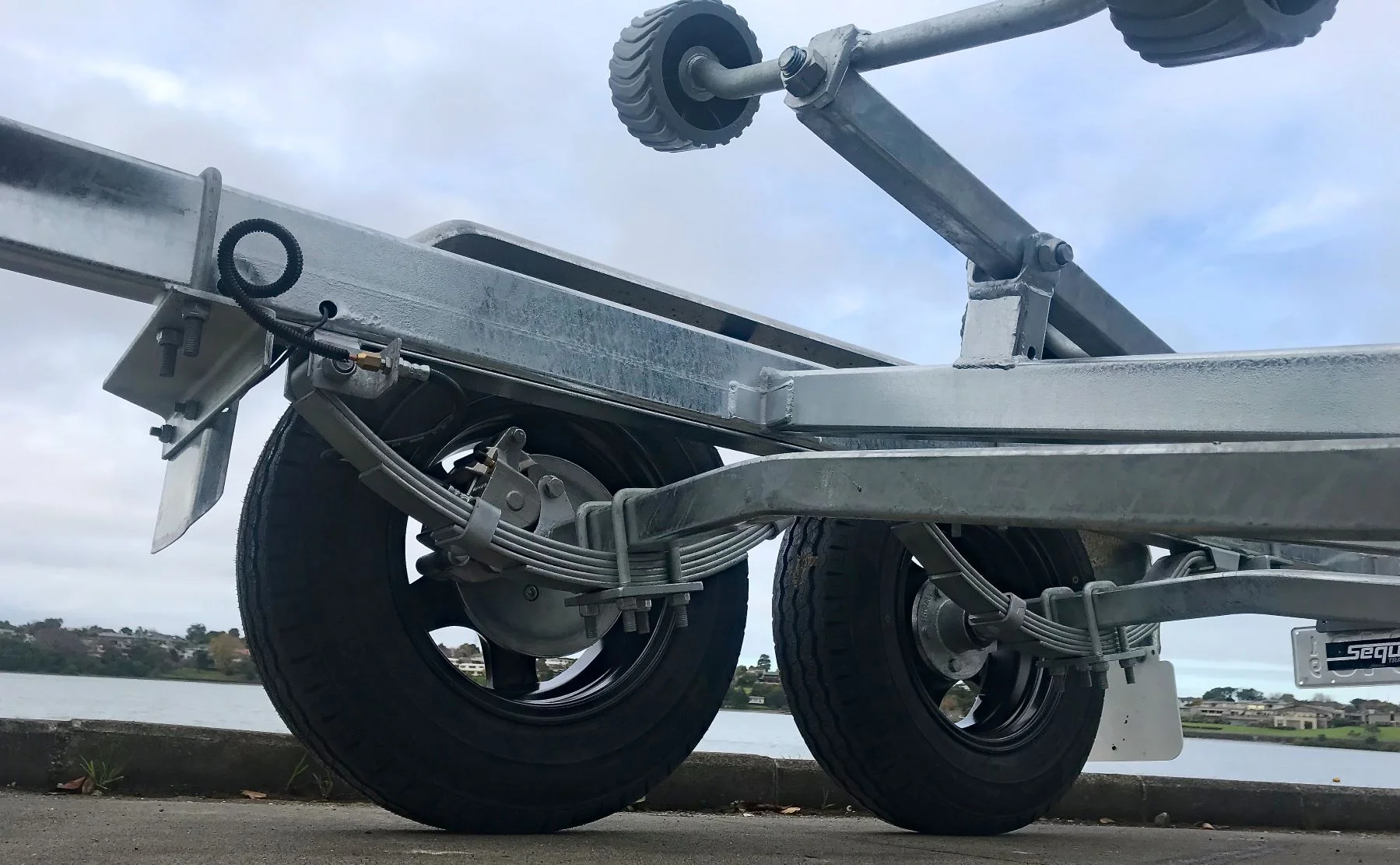

  • Galvanised 5 Leaf Springs x2 pr

  • Galvanised Tandem Axle Mudguards (NZ made)

  • Trojan Stub Axles and 1500kg Braked Hubs

  • Trojan Cast Callipers with Stainless Steel backed Brake Pads

  • Trojan Rubber Hose Kit

  • Trojan Marine Seals and Japanese Bearings

  • 13" Rims and 165mm 8 ply Rated Tyres

  • Solid Steel Galvanised Tilting Roller Arms (NZ made)

  • Roller Arm Supports with welded in sleeve to help prevent wear & Stainless Steel Nylocs

  • Jakaar Boomerang-tread Wobble Rollers x 24 (NZ made) with 3 year Warranty from Jakaar

  • Jakaar Keel Roller and Snubbing Block x 1 (NZ made) 3 year warranty

  • Hella LED lights with 5 year warranty from Hella (made in NZ)

Several optional upgrades available such as alloy wheels, black powdercoated guards, guidepoles, etc.
